MODEL 680-P2 PORTABLE SCALES

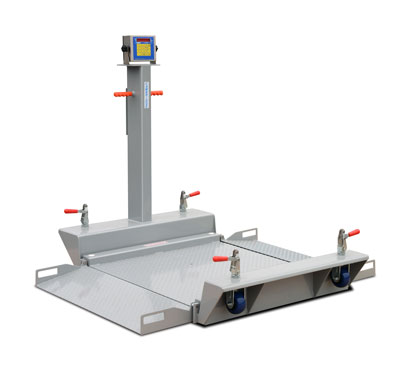

Double Ramp, Carbon Steel Model
Double Ramp, Carbon Steel Model
showing easy fold ramp operation
MODEL 680-P2 STANDARD FEATURES
• (680-P2) Two 12", folding, easy incline, side loading ramps.
• (4) Internally mounted, IP 67 water resistant rated load cells.
• Column mounted NEMA 4X junction box for convenient corner adjustments.
• Structural tubular steel construction.
• Anti-skid diamond plate deck with eye bolt holes.
• 150% Overload protection
• 100% end loading capacity.
• Shielded load cell cables and 10 foot indicator cable.
• Ultra-low profile (1.5" above the floor).
• 1 part in 5000 accuracy.
• (2) 4" straight cast iron wheels with roller bearings and grease fittings (front).
• (2) 4" swiveling cast iron wheels with roller bearings and grease fittings (rear).
• Wheel jacks to lift and lower scale.
• 40" high indicator column with mounting plate.
• OSHA orange safety handle grips.
• (680-P2) Two 12", folding, easy incline, side loading ramps.
• (4) Internally mounted, IP 67 water resistant rated load cells.
• Column mounted NEMA 4X junction box for convenient corner adjustments.
• Structural tubular steel construction.
• Anti-skid diamond plate deck with eye bolt holes.
• 150% Overload protection
• 100% end loading capacity.
• Shielded load cell cables and 10 foot indicator cable.
• Ultra-low profile (1.5" above the floor).
• 1 part in 5000 accuracy.
• (2) 4" straight cast iron wheels with roller bearings and grease fittings (front).
• (2) 4" swiveling cast iron wheels with roller bearings and grease fittings (rear).
• Wheel jacks to lift and lower scale.
• 40" high indicator column with mounting plate.
• OSHA orange safety handle grips.
MODEL 680-P2 OPTIONS
• Smooth carbon steel deck plate with eye bolt holes.
• Locking 4" cast iron wheels with roller bearings.
• Indicator mounting plate with 360° ball bearing swivel.
• Stainless steel and/or “FM” approved load cells.
• “FM” approved stainless steel Nema 4X junction box.
• Smooth carbon steel deck plate with eye bolt holes.
• Locking 4" cast iron wheels with roller bearings.
• Indicator mounting plate with 360° ball bearing swivel.
• Stainless steel and/or “FM” approved load cells.
• “FM” approved stainless steel Nema 4X junction box.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
