MODEL 680-RX SERIES AMBULATORY AND WHEELCHAIR SCALES

Tubular steel design for strength, accuracy and durability.

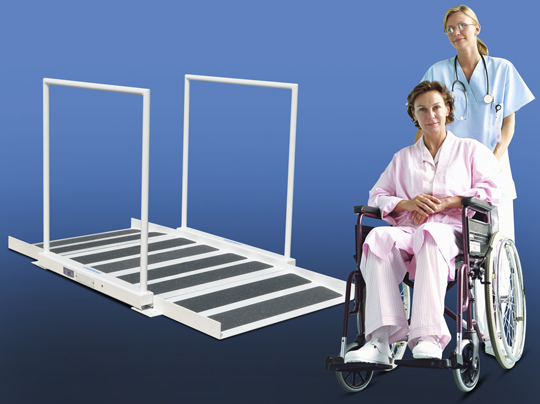

The 680-RX is shipped as shown with one ramp, one rear safety bumper rail assembly and two live hand rails.

The 680-RX can be configured with two ramps.

FEATURES • Ultra-lo profile design is only 1.5" height from floor level • Live safety side rails for oversized loads and roll off protection • Two live hand rails allow accurate weighing while supporting patients • Smooth deck plate with 1/8" thick corregated rubber matting • One ramp with raised safety side rails and 1/8" thick corregated rubber matting • One rear safety bumper rail assembly • Structural tubular design • Anti-skid leveling feet • 100% end loading capacity • 200% overload protection • 20’ indicator cable • Easy access leveling feet • Easy access junction board for corner adjusting • Shielded signal and load cell cables • Four internally mounted NTEP certified 5000 division, class III/IIIL, environmentally protected, IP67 water resistant rated load cells.

OPTIONS • Additional ramp for two way access

ACCESSORIES • Indicator / Printer Stands

MODEL 680-RX SERIES AMBULATORY AND WHEEL CHAIR SCALE SPECIFICATIONS PLATFORM SIZE OVERALL SIZE CAPACITY APPROX.SHIPPING WEIGHT 30” X 30” 36" X 48" including ramp 1000 Lb. x .2Lb. 190 Lb. including ramp 2500 Lb. x .5Lb. 190 Lb. including ramp 36” X 36” 39" X 54" including ramp 1000 Lb. x .2Lb. 250 Lb. including ramp 2500 Lb. x .5Lb. 250 Lb. including ramp 48” X 48” 54" X 72" including ramp 1000 Lb. x .2Lb. 415 Lb. including ramp 2500 Lb. x .5Lb. 415 Lb. including ramp

Specifications subject to change. Custom sizes and capacities are available.
