MODEL AL660-LA SERIES ALUMINUM LOW PROFILE LARGE ANIMAL SCALES

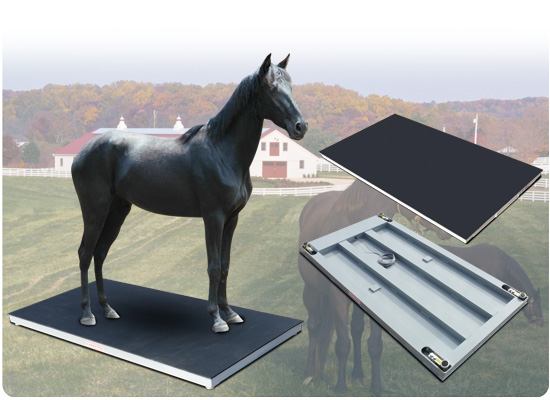

MODEL AL660-LA LOW PROFILE SCALE Our 660 line of low profile floor scales now includes our AL660-LA version designed for horse and large animal applications. This scale combines our low profile design, aluminum construction, and a durable hard rubber top pad to create a scale ideally suited for any farm or stable environment. Aluminum construction and stainless steel captive ball leveling feet work together to make this an easy to move and easy to level weighing platform which is impervious to weather and corrosion.

Plastic NEMA 4x junction box is housed inside the end tube on the AL660-LA. This arrangement protects the junction box but still allows easy access for periodic adjustments. Indicator cord emerges from under the scale and can be routed to either side of the scale and kept out of the path of the animal.

STANDARD FEATURES • 1/4" Structural Tubular Aluminum Construction • 1/4" Smooth Aluminum Deck Plate • 1/4" Rubber Mat - 60 Durometer • Side Access Plastic NEMA 4x Junction Box • Stainless Steel Captive Ball Leveling Feet • 150% Overload Protection • 100% End Loading Capacity • Low Profile Design - Only 3 1/2" High • 20 Foot Shielded Indicator Cable • Shock Load Protection • Four Internally Mounted Shear Beam Load Cells, NTEP Certified-5,000 Division, Class III/IIIL, Environmentally Protected, IP 67 Water Resistant Rated

OPTIONS • Stainless Steel IP 67 Water Resistant Rated Load Cells With Stainless Steel Hardware MORE INFORMATION

ACCESSORIES • Easy incline ramps • Bumper guards • Pit forms • Indicator/Printer stands • Locator brackets • 4" Leveling Foot Base Pads MORE INFORMATION

MODEL AL660-LA SERIES SIZES AND CAPACITIES SIZE CAPACITY SHIP WEIGHT 24” X 48” X 3.5” 1,000 Lb. X .2 lb. 100 Lb. 2,500 Lb. X .5 lb. 100 Lb. 36” X 72” X 3.5” 1,000 Lb. X .2 lb. 180 Lb. 2,500 Lb. X .5 lb. 180 Lb.

Specifications subject to change. Custom sizes and capacities are available.
