MODEL SS660 SERIES
STAINLESS STEEL LOW PROFILE SCALES

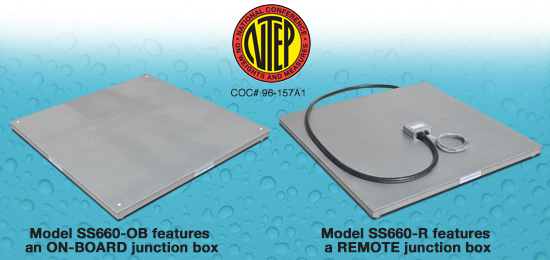

<Remote ,stainless steel , NEMA 4x junction box eliminates false readings due to condensation and water problems and enhances serviceability.
<Model SS660 shown with optional stainless steel indicator.
STANDARD FEATURES
• Smooth Type 304 Stainless Steel Deck Plate
• Type 304 Stainless Steel Construction with Capped and Sealed Framework
• Stainless Steel Load Cells– Environmentally Protected
• Remote Stainless Steel NEMA 4x Rated Junction Box
• 20’ Indicator Cable
• 10 Foot Protective Sealtite Conduit to Remote Stainless Steel NEMA 4x Junction Box
• Shielded Signal and Load Cell Cables
• Eye Bolt Holes Allow Easy Set-Up and Moving
• Compatible With Digital Indicators Having Remote Base Capabilities
• 100% End Loading Protection
• 200% Overload & Shock Load Protection
• (4) Internally Mounted, NTEP Certified, 5000 Division, Class III/III L
IP 67 Water Resistant Rated Stainless Steel Load Cells
• 1 Part in 5000 Accuracy
• Easy Access Leveling
OPTIONS
MODEL SS660-ST with removable stainless steel top plate.

MODEL SS660-PT with removable polyethylene butcher block style top.

• Fork lift package.
• Diamond tread stainless steel deck plate
• Type 316 stainless steel
• On board, stainless steel, NEMA 4x junction box.
ACCESSORIES
• Easy incline ramps
• Bumper guards
• Pit forms
• Indicator/Printer stands
• Locator brackets
MORE INFORMATION
MODEL SS660 SERIES SIZES AND CAPACITIES
SIZES AND CAPACITIES IN RED DENOTE "NTEP" APPROVED C.O.C. 96-157A1
SIZE
CAPACITY
SHIP WEIGHT
24” X 24” X 3”
1,000 Lb.
83 Lb.
2,500 Lb.
83 Lb.
30” X 30” X 3”
1,000 Lb.
110 Lb.
2,500 Lb.
110 Lb.
36” X 36” X 3”
1,000 Lb.
160 Lb.
2,500 Lb.
160 Lb.
5,000 Lb.
160 Lb.
48” X 48” X 3”
1,000 Lb.
240 Lb.
2,500 Lb.
240 Lb.
5,000 Lb.
240 Lb.
10,000 Lb.
345 Lb.
48” X 60” X 3”
5,000 Lb.
358 Lb.
10,000 Lb.
460 Lb.
48” X 72” X 3”
5,000 Lb.
435 Lb.
10,000 Lb.
554 Lb.
60” X 60” X 3”
5,000 Lb.
448 Lb.
10,000 Lb.
583 Lb.
60” X 84” X 4”
10,000 Lb.
1,140 Lb.
Specifications subject to change
