CAMBRIDGE SCALE WORKS
MODEL: 700-PAW
PORTABLE AXLE WEIGHER

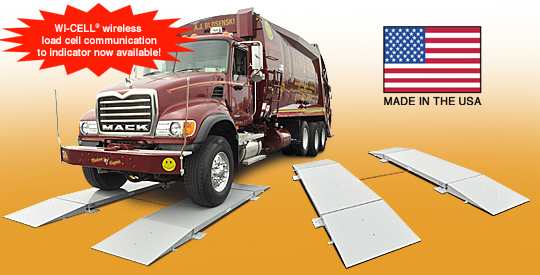

Cambridge Scale Works Model 700-PAW shown with optional ramps.

Model 700-PAW ramps are constructed with a standard asphalt package. This design incorporates a heavy gauge carbon steel plate attached directly to the bottom of the ramp. This plate features pre-drilled lag down locations and leveling feet brackets to firmly secure the scale in place. The oversized “footprint” created by this plate greatly increases stability and allows the 700-PAW to be used on hard pack, asphalt, or concrete surfaces.

MODEL 700-PAW STANDARD FEATURES
• 50K, 60K, 70K lb. capacities available.
• Four 10K, 15K, 20K lb. environmentally
  sealed load cells
• Stainless steel NEMA 4X junction box
• Structural tubular steel construction
• Diamond tread deck plate
• 200% overload protection

• Note: Portable Axle Weighers and ramps are
..sold separately.
Structural tubular steel construction.
Illustration depicts Cambridge Scale Works Model 700-PAW in a typical truck scale component system. Poured concrete replaces much of the steel area of a traditional truck scale offering all the capability of a truck scale at a sizeable savings.
Pocket mounted junction box provides protection and easy access.

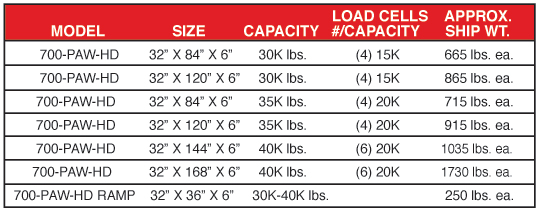

Model 700-PAW Sizes and Capacities
Model
Description
Size
Capacity
Approx Shipping Weight
700-PAW
Portable Axle Weigher
32" X 84" X 6"
25K, 30K or 35K Lb ea.
550 to 665 Lb
700-PAW
Portable Axle Weigher
32" X 120" X 6"
30K or 35K Lb ea.
865 Lb
700-PAW
Ramp
32" X 36" X 6"
25K, 30K or 35K Lb ea.
400 to 450 Lb
Sizes and Capacities subject to change without notification
